Summary
The Proxicam USB WiFi Camera Calibration Dongle (SKU: USBCAL) is a specialised diagnostic and setup tool designed to establish a temporary, ad-hoc wireless network between a Proxicam Smart Camera and a smart device. It enables technicians and installers to access the on-board Proxicam Configuration App for real-time camera calibration, detection zone adjustment, and system testing.
System Features and Functions
Peer-to-Peer Configuration Access
- Ad-Hoc Network Creation: The dongle broadcasts a localized 2.4GHz/5GHz WiFi network directly from the camera, eliminating the need for external routers or cellular data connections during installation.
- Cross-Platform Compatibility: Allows the Proxicam Configuration App to be accessed via the standard web browser of any WiFi-enabled smartphone, tablet, or laptop (iOS, Android, Windows, Mac).
Hardware and Environmental Limitations

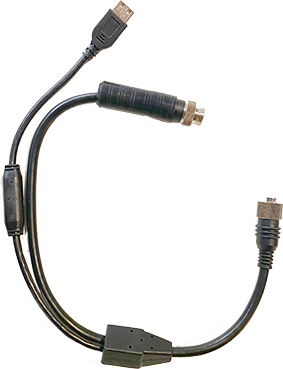

- Temporary Deployment Design: The USBCAL module connects in-line with the system using a dedicated Y-Harness.
- Ingress Warning: The USBCAL dongle and its USB connections are NOT water or dustproof. It is strictly a temporary installation tool and must be removed before the machine is returned to operational service to prevent system damage and voiding the IP69K rating of the camera circuit.
Installation and Usage
Connecting and Configuring the Camera
- Power Down:
Ensure the machine's power is completely turned OFF. - Harness Connection:
Plug the USBCAL WiFi Interface Y-Harness in-line between the Proxicam Camera (PXCAM-EVO) and the system extension harness. - Power Up:
Turn the machine's power ON to supply voltage to the camera and the dongle. - Join Network:
On your smartphone or tablet, search for available WiFi networks and connect to the SSID: PXCAM-********* (the asterisks denote the unique camera ID) using the password provided with the product documentation provided. - Maintain Connection:
If your device displays a "No Internet Connection" warning, select Always Connect or Keep Connection. - Launch App:
San the QR code printed on the Proxicam box and supplied literature. - Login:
At the login screen, enter the Username: installer and leave the Password field blank. - Finalisation:
Once calibration and zone setups are complete, power down the machine, remove the USBCAL dongle and Y-harness, and reconnect the camera directly to the extension harness.
Technical Specifications
- Input Voltage: 5V DC
- Current Draw: <1A
- Interface: USB 2.0
- IEEE Standard: 802.11ac
- Operating Frequency: 2412MHz-2472MHz, 5180MHz-5240MHz, 5745MHz-5825MHz
- Wireless Speed: 11n up to 300Mbps; 11ac up to 866.6Mbps
- Operating Temperature: -20°C to +60°C (-4°F to 140°F)
- Antenna Type: Integral antenna (2dBi gain)
Troubleshooting & FAQ
I am connected to the Proxicam WiFi network, but the Configuration App will not load in my browser.
This is often caused by the smart device attempting to use mobile data because the Proxicam WiFi network does not provide internet access. For Android devices, ensure that advanced WiFi features like "Switch to mobile data" are disabled. For Apple iOS devices, ensure "WiFi Assist" is turned off in your cellular settings.
Can I leave the USBCAL dongle permanently installed to allow for remote access later?
No. The USBCAL dongle and the Y-harness are not weatherproof and must be removed after the initial configuration is complete. Leaving the dongle connected exposes the camera’s communication and power circuits to moisture and dust ingress, which could lead to system failure and void the warranty.
Related Articles
- Proxicam Camera Configuration App User Manual
- Proxicam AI Camera PXCAM-EVO Setup Guide
- Proxicam Wiring Diagrams and Schematics

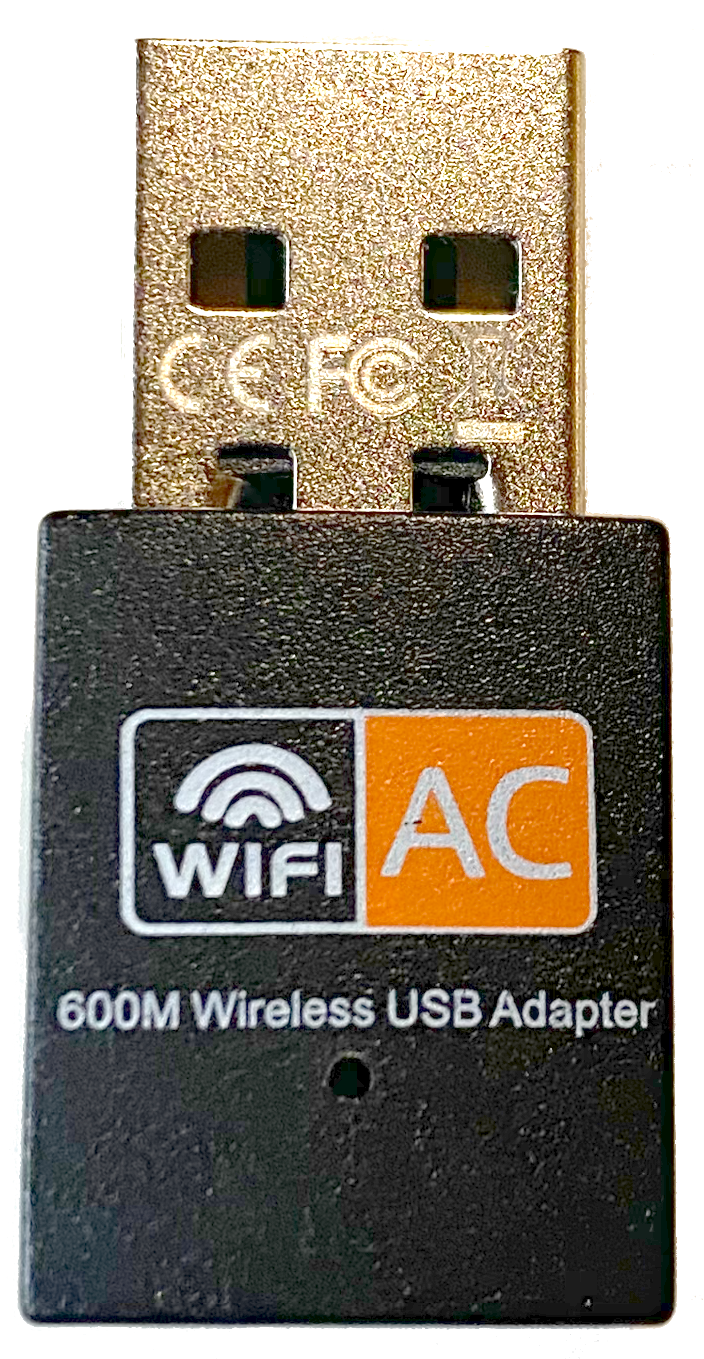

The Proxicam WiFi dongle is used to create a direct WiFi network between the Proxicam Camera and a phone for the purpose of configuring the Proxicam Cameras.
The Proxicam WiFi dongle is a USB device that plugs into the supplied Y-harness, which is connected in-line between the Proxicam Camera and the system. .
